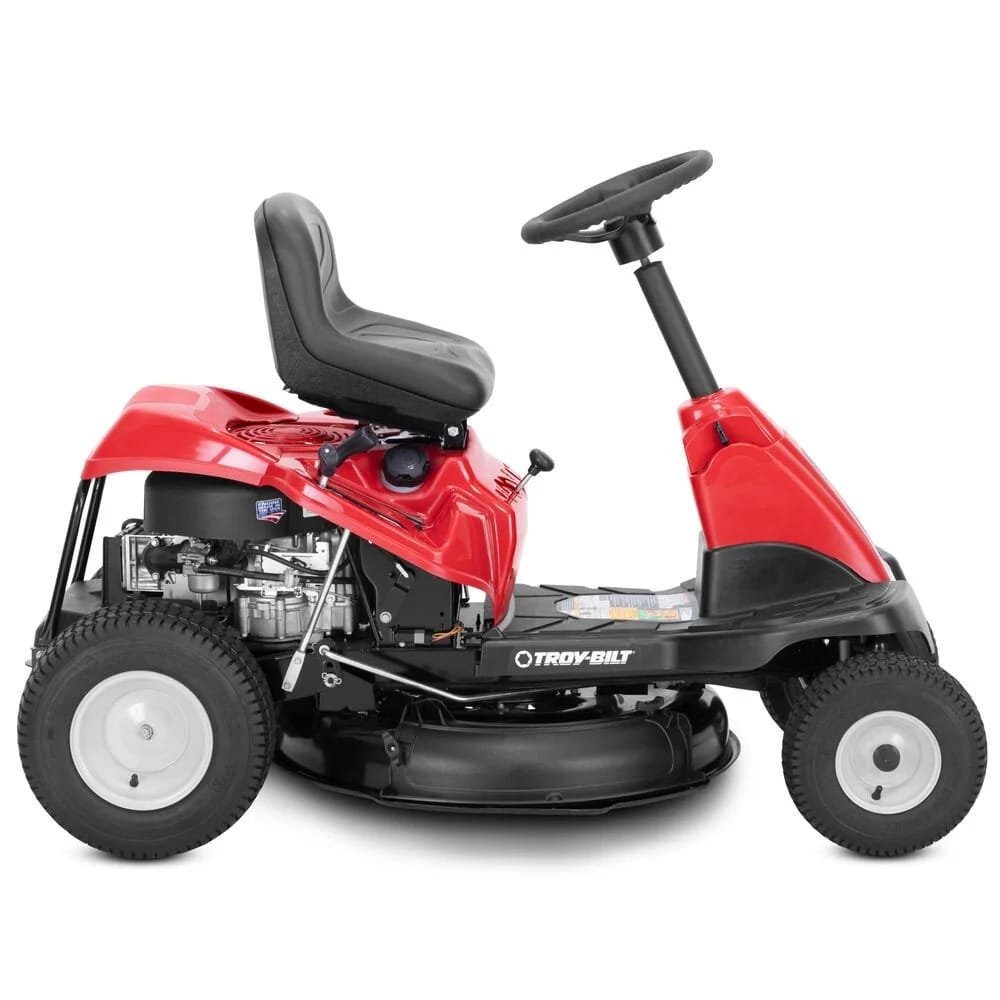

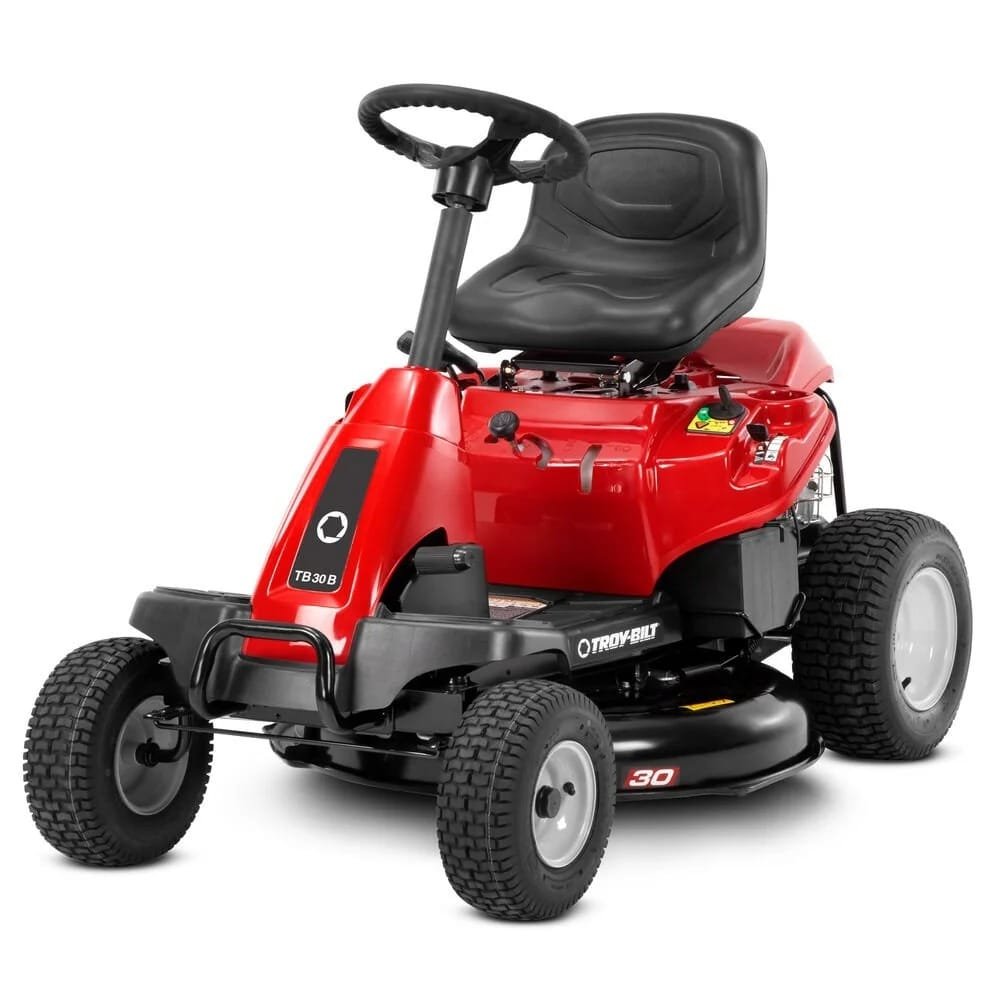

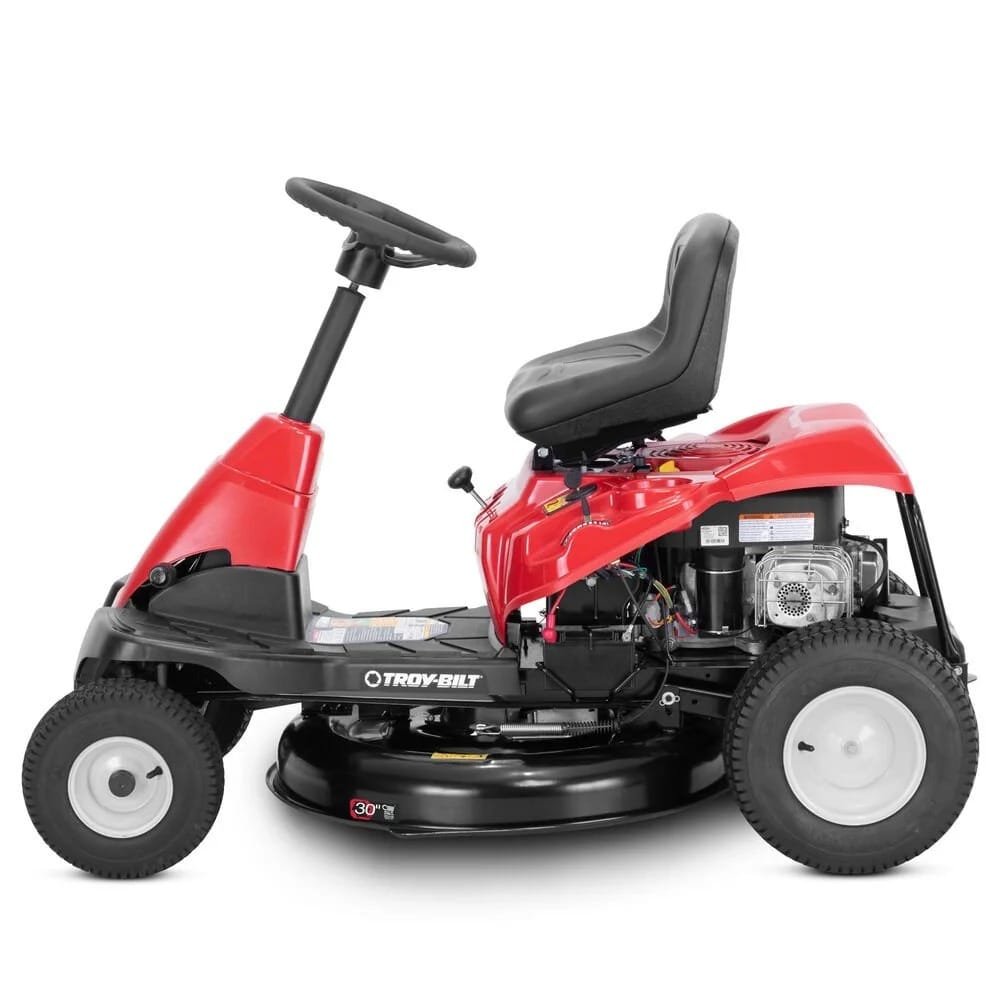

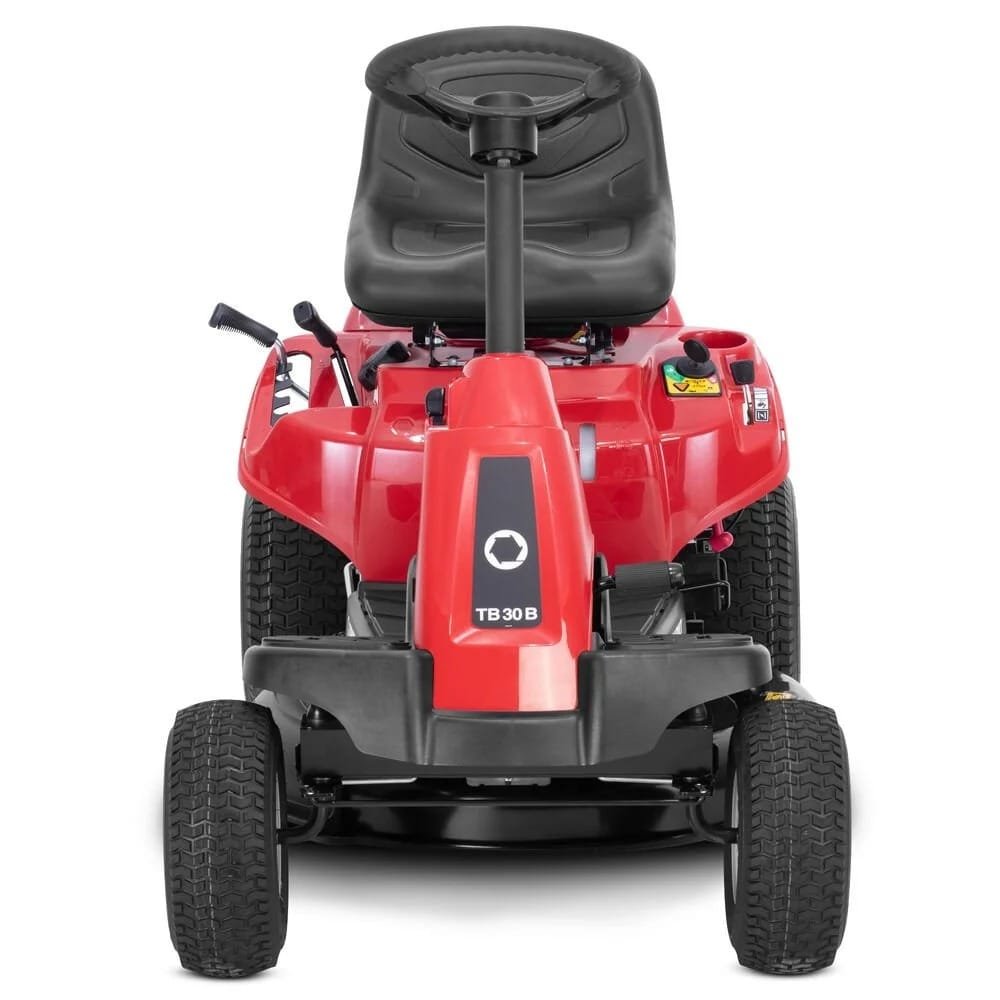

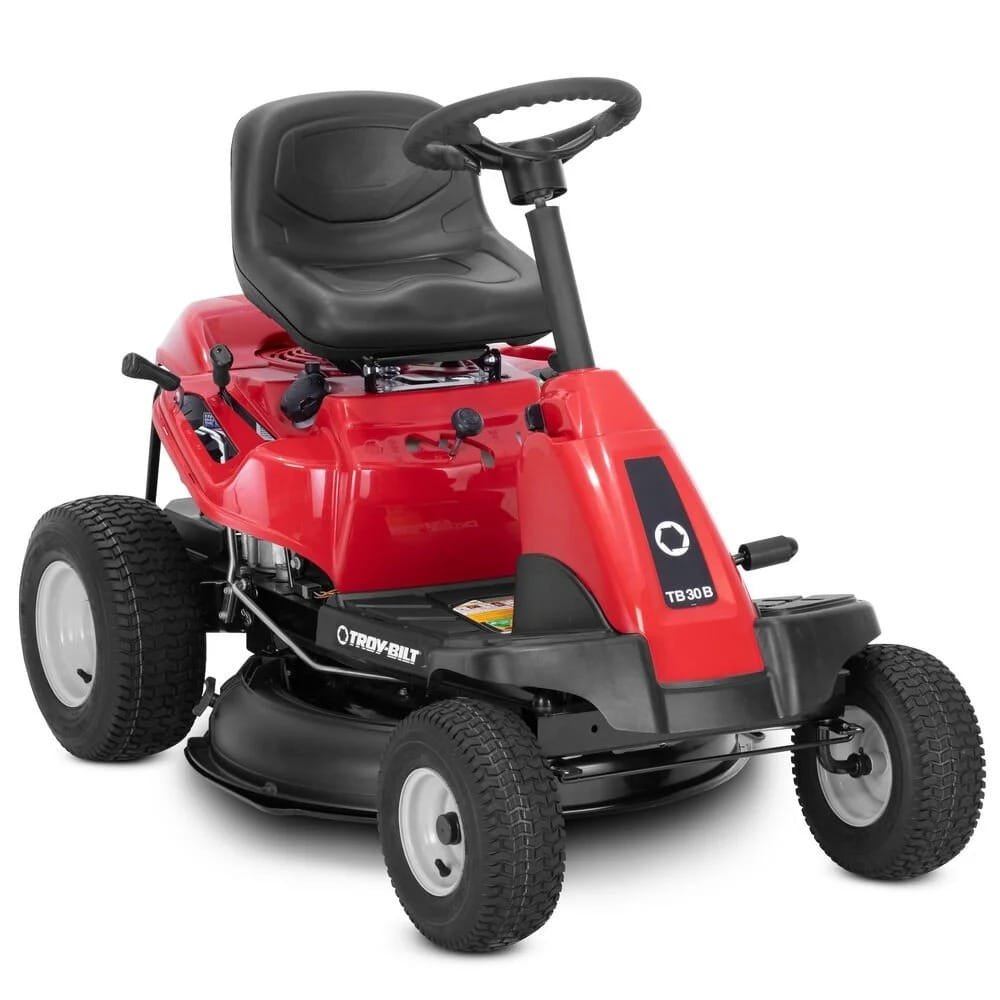

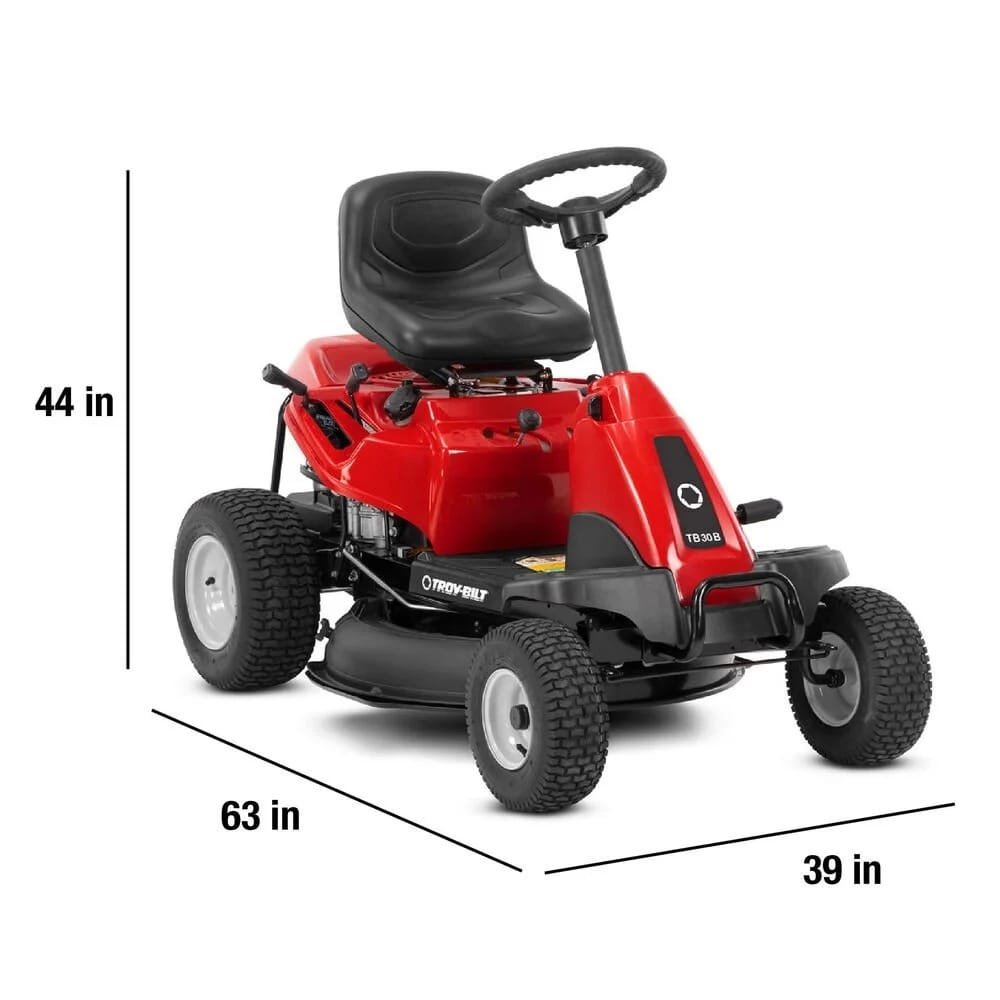

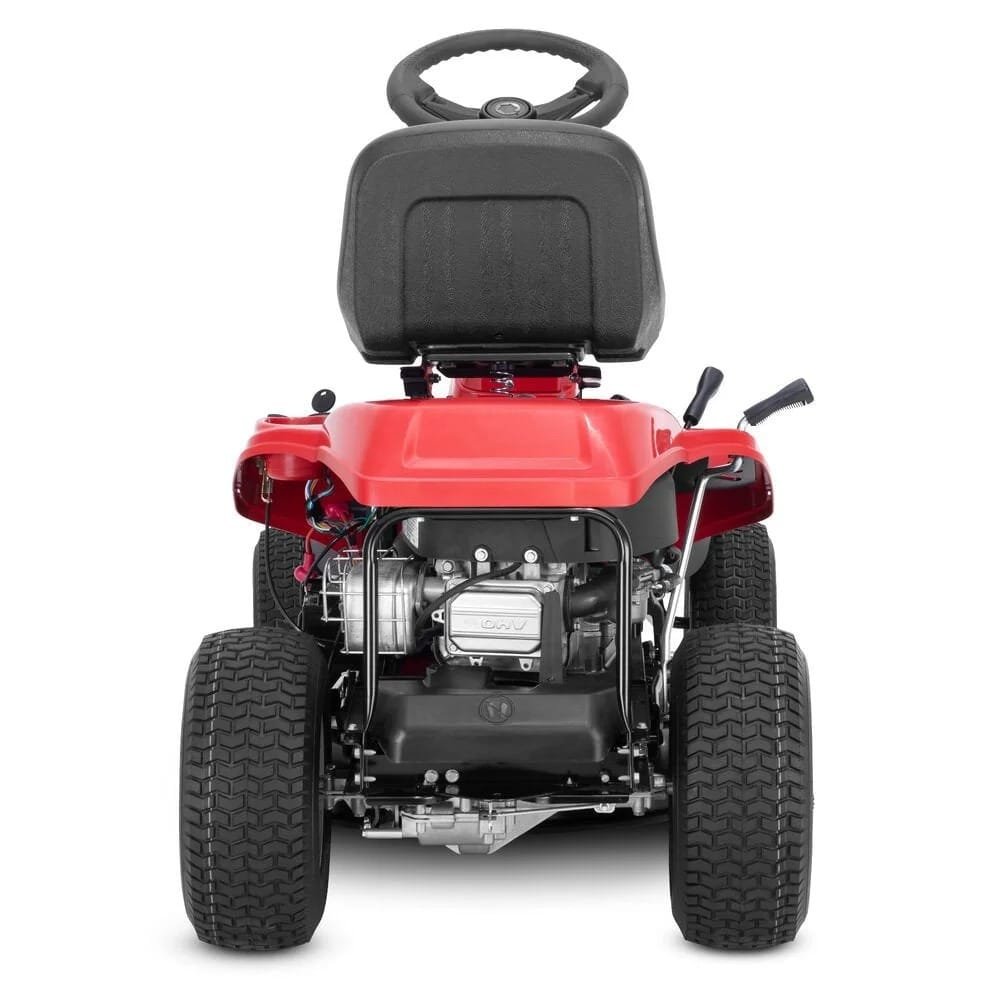

TB30B 30-Inch Compact Riding Lawn Tractor – For Small to Medium Yards
$632.49
Description
Save on storage space with the small riding mower design of the Troy-Bilt® TB30B riding mower. Ideal for smaller or gated yards, this riding mower has a 30″ deck that will fit through most standard-size gates. Easily adjust your mowing speed with a 6-speed, Shift-on-the-Go™ transmission.
Documents and Guides
- 10.5 HP*/344cc Briggs & Stratton® engine designed for reliable starting
- 30″ side-discharge steel cutting deck is designed to fit through gates 36″ wide or larger and is an ideal choice for small or gated yards up to 1/2 acre.
- 6-speed Shift On The Go™ transmission has a dash panel control that is easy to see and adjust
- Space-saving design makes the TB30B riding mower easy to store in garages and sheds
- Help keep your lawn healthy and return nutrients into the soil by using the included mulch plug and help avoid thatch
- Small Riding Mower
Specs & Maintenance
Engine
- Engine BrandBriggs & Stratton®
- Engine ModelPower Built
- Engine Model Number21R707-0152
- Engine Displacement344cc
- Engine Output10.5HP
- Starter TypeElectric
- Fuel Tank Capacity1.3 gal. US (4.92 L )
- CylindersSingle
- Engine StartIgnition Key
- Engine Oil Capacity1.5 qt. US (1.42 L)
- LubricationFully pressurized
- Charging System3 amp regulated
- Fuel GaugeNo
- GovernorMechanical
- ChokeChoke-a-matic
- Air FilterDual element
- Oil FilterNo
- Fuel DeliveryCarburetor
Battery
- Battery135 CCA
- Battery TypeAGM (Absorbent Glass Mat)
- Battery Voltage12V
Drive System
- TransmissionTroy-Bilt
- Forward Speed4.25 MPH / 6.7 km/h
- Reverse Speed2 MPH / 3.2 km/h
- Drive SystemCVT
- Transmission Control6-Speed Hand Lever
- Transmission HousingAluminum
Cutting Deck
- Deck Cutting Width30 in
- Deck WashNo
- Deck Material14-gauge steel
- Deck Engagement (PTO)Manual
- Deck ConstructionStamped
- Blade(s)1
- Deck LiftHand lever
- Cutting Height Range1.5″ – 4″
- Anti-ScalpingN/A
- Deck Positions5
Chassis
- FrameRobotically welded
- Turning Radius18″
- BumperNo
- Rear Tow HitchYes
- Corrosion ProtectionYes
- Front Pivot Bar14-gauge steel
Controls
- Cruise ControlNo
- BrakesDisc
Comfort
- Seat TypeMid-back
- ArmrestsNo
- Seat AdjustmentKnob
- Floor MatsIntergral
Wheels
- Bearing TypePoly Bushing
- Rear Tires16″x 6.5″-8″
- Front Tires13″x 5″-6″
- Tire TreadTurf Saver
Additional Specifications
- Mulch KitIncluded
- Headlight(s)No
- Cup HolderYes
- Operator Presence SystemYes
- Model Number13AC26JDA23
Warranty
- Residential Warranty2-year limited residential
- Frame Warranty2-year limited
- Front Axle Warranty2-year limited
- Deck Shell Warranty2-year limited
- Commercial WarrantyNo
Disclaimers
- SpecificationsSpecifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Horsepower*As rated by engine manufacturer
